Metal Floor Deck Roll Forming Machine Speed 12m/Min 1.2mm thickness With Touch Screen

Name: Metal Floor Deck Roll Forming Machine Speed 12mMin 12mm thickness With Touch Screen
Brand: SUSSMAN
Price: 1 USD

Buy cheap Metal Floor Deck Roll Forming Machine Speed 12m/Min 1.2mm thickness With Touch Screen product

Brand Name : SUSSMAN

Model Number : SS-FD

Certification : SGS,CE ,ISO9001

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T,

Supply Ability : 10 sets per month

Delivery Time : 60-90 working days

Packaging Details : Standard Packing with film coated and steel wire fixed

Name : Galvanized Steel Floor Deck Roll Forming Machine

Shaft diameter : 90

material thickness : 0.8-1.2mm

Roller stations : 28 stations

Roller material : Gcr15, Quench HRC58-62 Plated Chrome

Power Supply : 380V, 50HZ,3 phase

Tolerance : 1.5mm

Tolerance 1.5mm 11 Material of cutting : Cr12

Contact Now

12m/min Building Structure Manufacturer Floor Decking Roof Deck Roll Forming Machine

Floor Deck Making Machine Technical Parameter

Item NO	Description
1	Steel Thickness	0.75-1.2mm
2	Product Line Speed	up to 12
3	Roller station	28 stations
4	Roller Material	45# steel
5	Shaft diameter	90
6	Main Motor Power	18.5kw
7	Hydraulic cutting Power	7.5KW
8	Hydraulic pressure	12KW
9	Power Supply	380V, 50HZ,3 phase
10	Tolerance	1.5mm
11	Material of cutting	Cr12
12	Control system Panasonic	PLC with touch screen

Machine List

No	Name	quantity
1	5 ton passive de-coiler	1 set
2	Main roll forming machine	1 set
3	PLC system	1 unit
4	Hydraulic station	1 unit
5	Out tables	2 units

Working Flow of Machine

Uncoiling—Feeding&Leveling--Roll forming—Cutting—Products collecting

Metal Floor Deck Roll Forming Machine Speed 12m/Min 1.2mm thickness With Touch Screen

Standard Profile Drawing of product

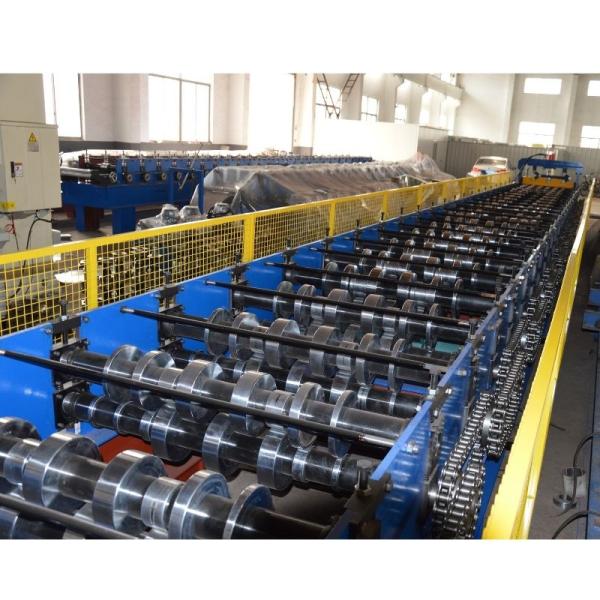

Machine Photo

Metal Floor Deck Roll Forming Machine Speed 12m/Min 1.2mm thickness With Touch Screen

Loading Pictures

Metal Floor Deck Roll Forming Machine Speed 12m/Min 1.2mm thickness With Touch Screen
